Configuration via cable

Configure Queclink's GL3xx devices one by one using a computer and a data cable. Step-by-step instructions for initial configuration of the devices for live tracking in RACEMAP.

Requirements

• Software: Queclink manage tool

• PC: The manage tool works on Windows computers only.

• Data cable for USB port: Each device type of the GL3xx series requires a specific data cable.

Download the Queclink manage tool corresponding to your device type.

GL320M

https://static-cdn.racemap.com/trackers/firmwares/gl320m/latest-manage-tool.zip

GL310M

GL300M

GL300W

GL300

Download Queclink manage tool for a specific firmware version (e.g. R01A11V14) according to the format of the sample URL. https://static-cdn.racemap.com/trackers/firmwares/gl320m/R01A11V14/manage-tool.zip

The computer needs a driver to enable the USB port for communication with the uart chip in the data cable.

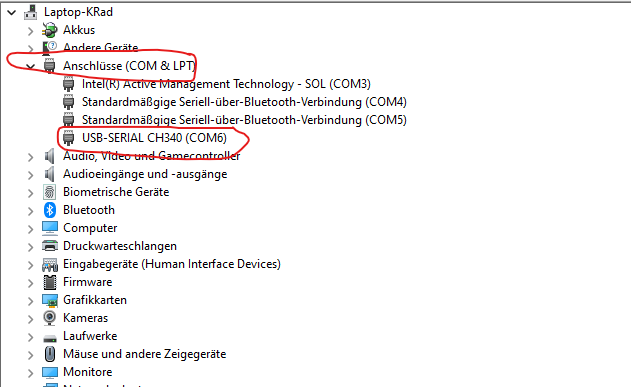

Device settings of the computer: COM >> USB-Serial CH340

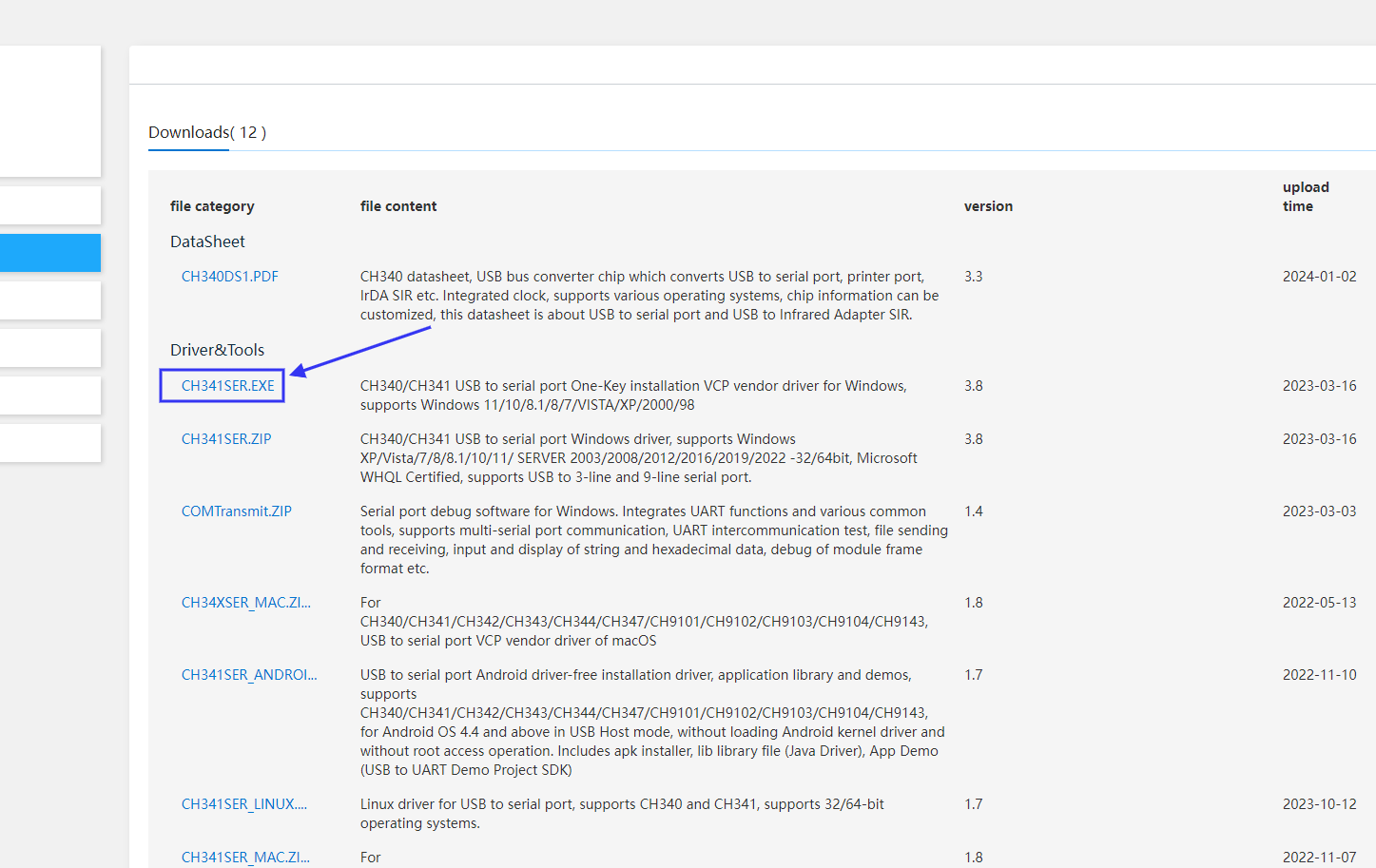

We used this driver: https://www.wch-ic.com/search?q=CH340&t=downloads

For GL300M we installed the driver according to this documentation: https://embetronicx.com/uncategorized/fixed-prolific-pl2303ta-usb-to-serial-and-windows-11/

Load RACEMAP configuration on your device

Download the latest Racemap configuration file config.ini.

GL320M

https://static-cdn.racemap.com/trackers/configs/gl320m/config.ini

GL310M

GL300M

GL300

Rename file ending to GL320M, respectively.

• Turn on the GPS tracker.

• Connect the data cable to a COM port.

• Connect the data cable to the device.

• Open the Queclink manage tool.

• Select the COM port and click 'Try to Connect'.

• Click 'Read All from Device' will show the IMEI of your device.

Select the COM port

'Read All from Device' will show the IMEI of the connected device.

Note: Different firmware versions may require specific manage tool versions, so the combination of firmware and manage tool might differ.

The 'Read All from Device', 'Send All to Device', and 'Load from Local' functions in the tool apply a configuration file. If the tool encounters an unknown command, it issues a warning. Check the warning and proceed.

Check the warnings and proceed.

Click 'Load from Local' and select the configuration file config.GL320M.

'Load from Local' to select the configuration file config.GL320M

Click 'Send All to Device' to apply the configuration file config.GL320M on the device. With 'Operation Log' you can monitor this process. Use 'COM Wizard' to continue with the next device.

'Send All to Device' writes the configuration on the device.

Configure your SIM card

• Insert your SIM card in the device.

• Turn on the tracker.

• Connect the data cable to a COM port.

• Connect the data cable to the device.

• Open the manage tool.

• Select the COM port and click 'Try to Connect'.

• Click 'Read All from Device' will show the IMEI of the connected device.

• Select 'Server Connection' >> 'Bearer Setting Information'

Server Connection >> Bearer Setting Information

Backend Server Register Information

• Paste the APN information of your SIM card provider and overwrite the previous filling required: APN for LTE and GPRS, normally both same optional: USERNAME and PASSWORD

• Send the command to your tracker.

• Use 'COM Wizard' to continue with the next device.
